This project is a custom 3D printed housing for the open-source MyStat potentiostat, designed for use in experimental flow battery setups as part of the FAIR Battery/Flow Battery Research Collective. The housing provides a compact, durable, and functional enclosure for the circuit board, protecting it from spills and wear during lab work.
More images and 3D files can be found here.
Design Overview
The MyStat is an open-source potentiostat used in electrochemical experiments, including testing and development of low-cost flow batteries. The bare circuit board is not well-suited to use in wet or rugged lab environments, so this project provides a simple, protective enclosure that balances usability, airflow, and aesthetics.
Design Considerations
Access and Serviceability: The housing needed to be easy to open and close to allow insertion and removal of the board, while keeping all components securely in place.
Thermal Management: To prevent overheating during use, the housing includes passive airflow vents and an active cooling fan, mounted on the rear panel.
Fan Integration: The fan is powered directly from the MyStat board, requiring no additional power source. It pulls air across the internal components through a honeycomb-pattern front vent.

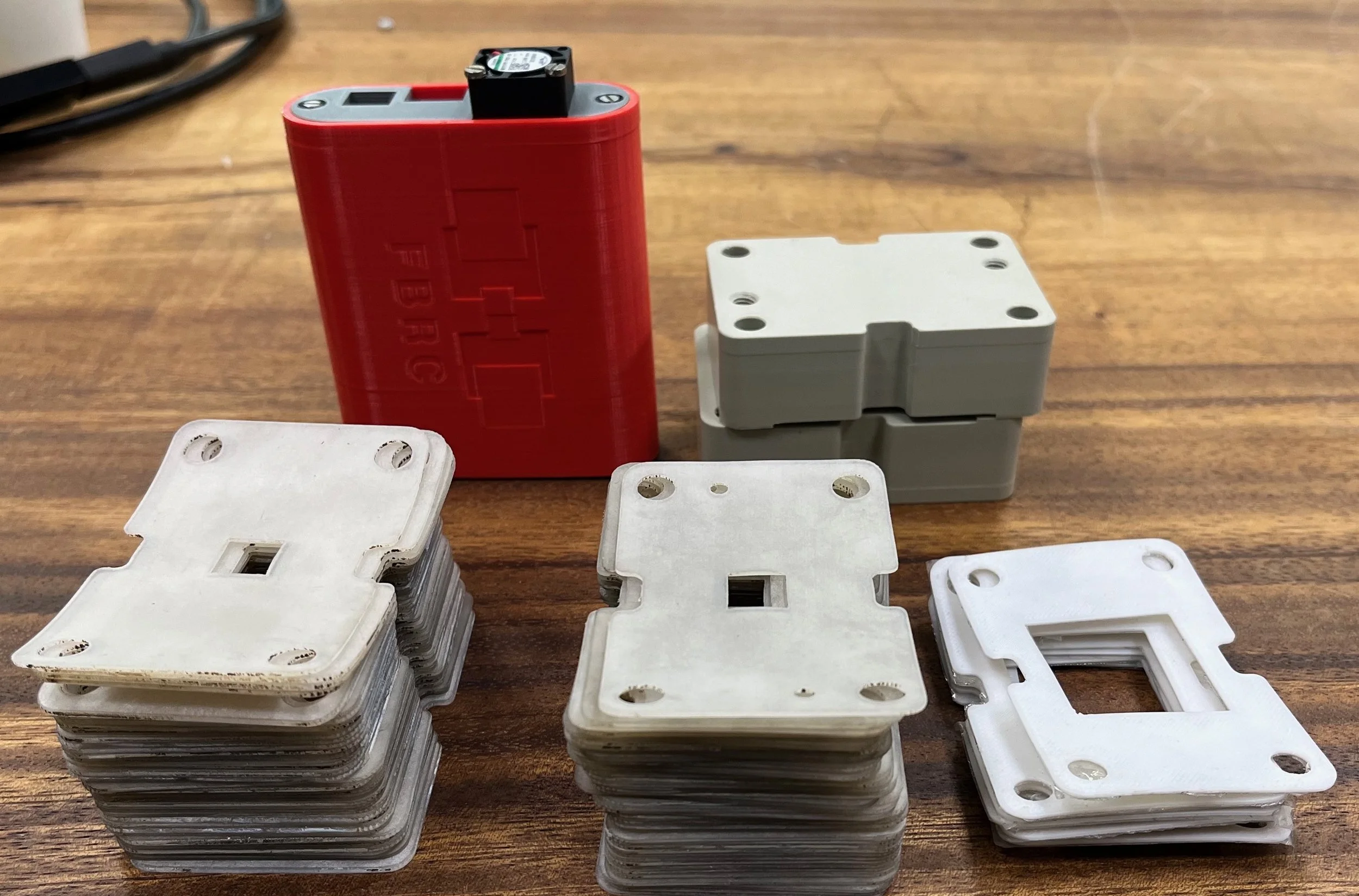

Ergonomics and Aesthetics: The body features a smooth, ovate design for pleasant handling and a clean appearance. The logo of the Flow Battery Research Collective is debossed into the top.

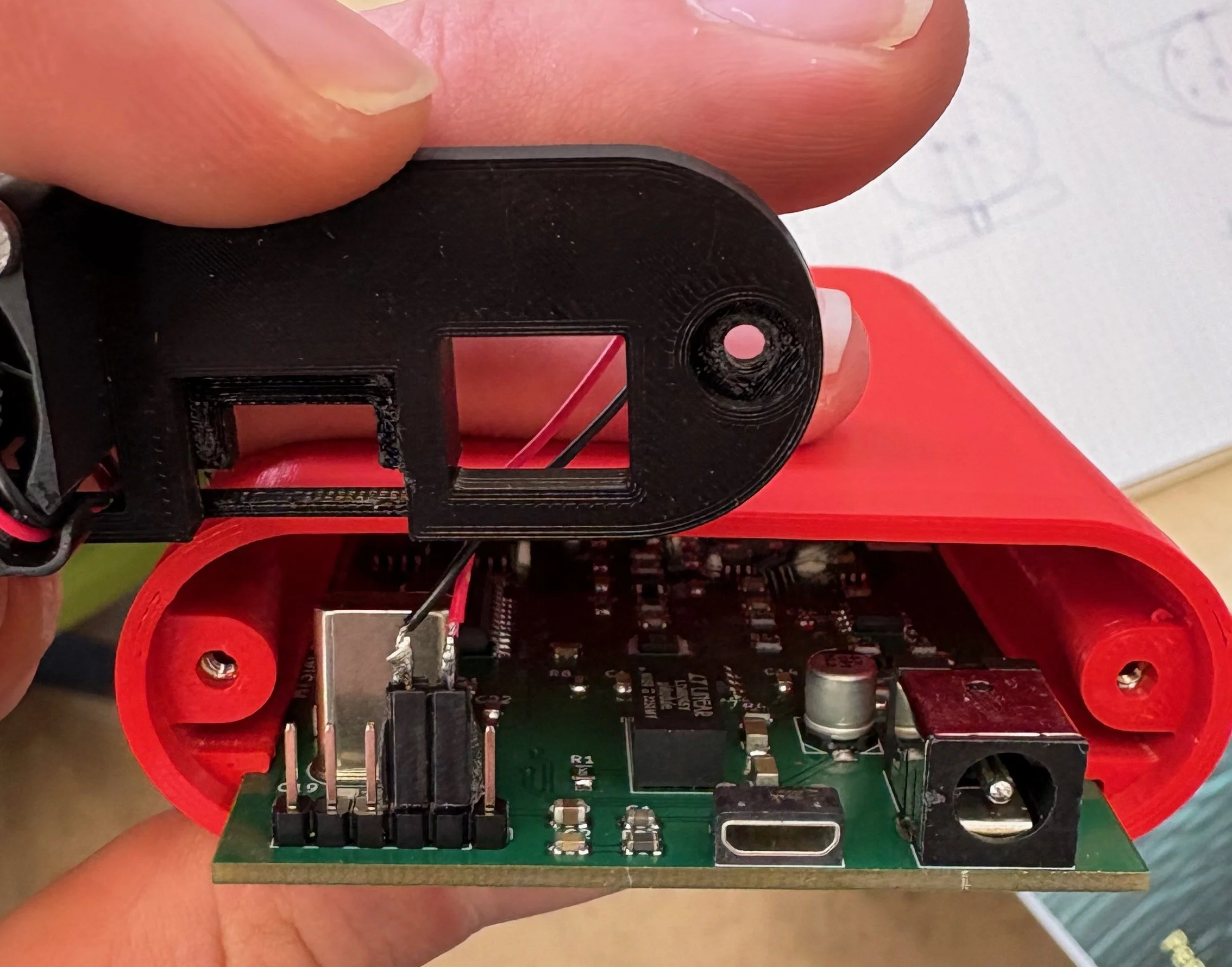

Assembly: The body includes embedded nut slots for clean panel mounting using screws, making it easy to disassemble without damage.
